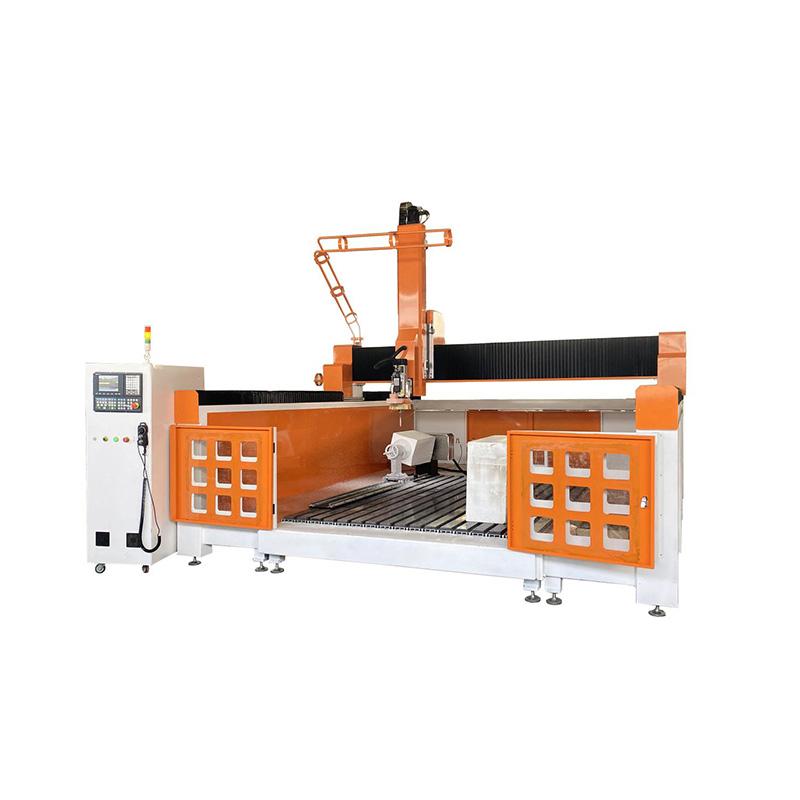

Foam Engraving Machine CX-2040 foam cnc engraving machine foam cnc engraving machine manufacturer
This foam engraving machine is a high-tech, fully automatic computer-controlled engraving equipment that can engrave foam and wood. The foam router machine can engraves all kinds of large nonmetallic molds, especially automotive foam molds. Musical instrument industry: Engrave 3D large instruments and shaping.
Advantages of Foam CNC Machine
Adopt large cross-section imported linear guide, lifelong maintenance-free self-lubrication.
With automatic tools changing spindle, the maximum speed of spindle reaches 24000 RPM.
The whole EPC workbench, after strict annealing and other heat treatment processes, ensures the structural stability and rigidity of the bed.
Taiwan SYNTEC system, safe and reliable operation, efficient code reading speed, and with online simulation function, online monitoring function, to ensure the efficient and safe processing.
Aluminum table with T slot Suitable for processing large plate relief carving, hollow engraving machine, uneven carving workpiece.
Specification
|
Name |
Origin |
|
|
X Y Z axis working size |
2000*4000mm*1200mm 4Aixs |
|
|
A Rotary diameter |
D600mm * L2000mm |
|
|
File format |
G code |
|
|
Working voltage |
AC380V/50HZ |
|
|
Control system |
Syntec 6MB 4axis system |
Taiwan |
|
Transmission |
Square rail 30 |
Taiwan |
|
Spindle |
HQD 9KW Air cooling 24000rpm |
China |
|
ATC Tools |
Automatic 8 tools changer |
|
|
Frequency inverter |
Eura 11KW |
China |
|
Servo Motor |
X/Y Axis Euro servo motorZ Axis 1.3KW+break |
China |
|
Reducer |
Shimpo |
Japan |
|
Table |
Aluminum table |
|
|
Dust collector |
3KW |
|
|
Bed |
Seperated bed support for loading container |
|
|
Weight |
About 2500kgs |
|
|
Packing Size |
About L3800mm*W1600*2200mm |
|
Applicable Industry
Wood, EPS, Sponge, Polypropylene plastic foam material(EPP).
Molds industry: It engraves all kinds of large nonmetallic molds, especially automotive foam molds.
Musical instrument industry: Engrave 3D large instruments and shaping.
